Product Name:

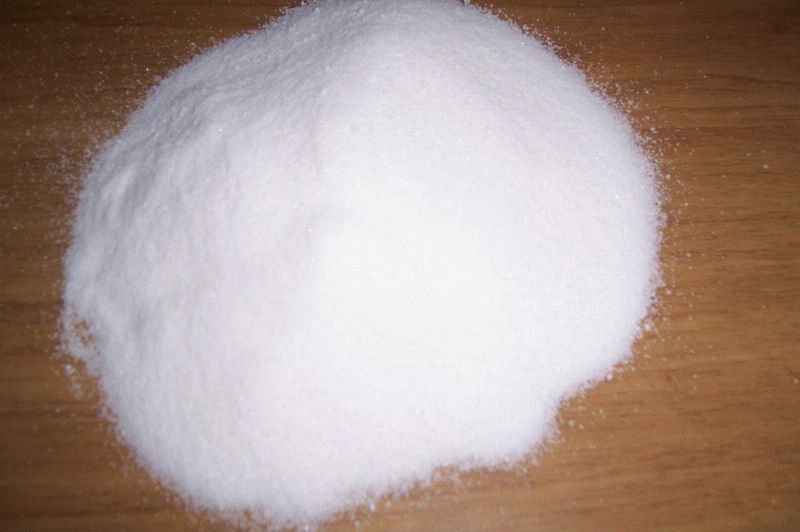

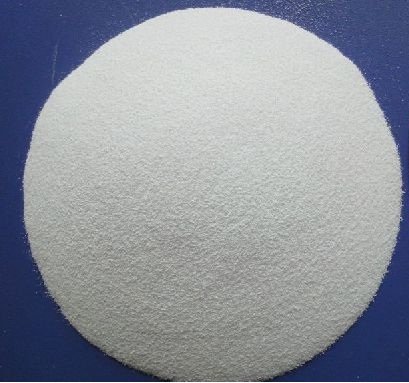

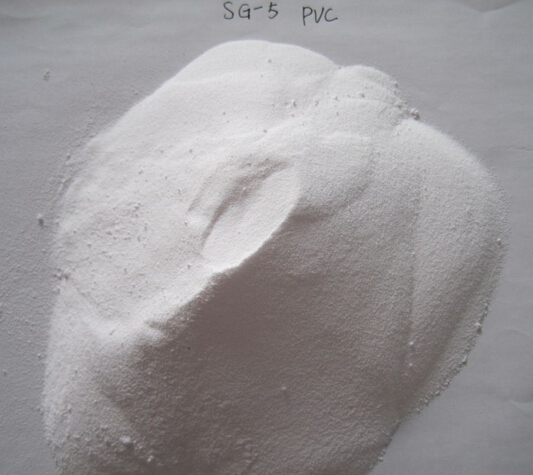

PVC resin

PVC compound for soft wire and cable, based on PVC resin, is produced by high-speed kneading, mixing, plasticizing and granulation with adding plasticizer, stabillizers, fillers, lubricants and etc. The product has good electrical properties, chemical stability, is a cheap but qualified insulating material. Meanwhile, the Eco-friendly PVC cable compound which is produced by environmentally efficient compound stabilizer etc. is comply with EU RoHS 6 requirements. This series of products based on different models and temperature levels, respectively, can be used for manufacturing indoor wire, meter communication cable, various low-voltage wire and cable.

Parameter		Grade
Standard:GB5761-1993		SG3	SG5	SG7	SG8
K;Value		72-71	66-68	62-60	59-55
PolymerizingIndex		1300+/-50	1000+/-50	800+/-50	700+/-50
Numberofimpurityparticles ≤		16	16	20	20
Volatilecontent(incl.water)% ≤		0.3	0.4	0.4	0.4
Apparentdensity ≥		0.42	0.48	0.48	0.5
Particlesize	≥0.25mm ≤	2	2	2	0.4
Particlesize	≥0.063mm ≥	95	95	95	95
NumberofFishEye(/400cm2) ≤		20	20	30	30
Plasticizerabsorptionof100gresin ≥		26	19	12	22
Whiteness(160°C,after10min.)% ≥		78	78	75	75
VCMResiduePPM ≤		5	5	5	5

If you want to know more details, please send an email to us to sales@solidchemicals.cn .
